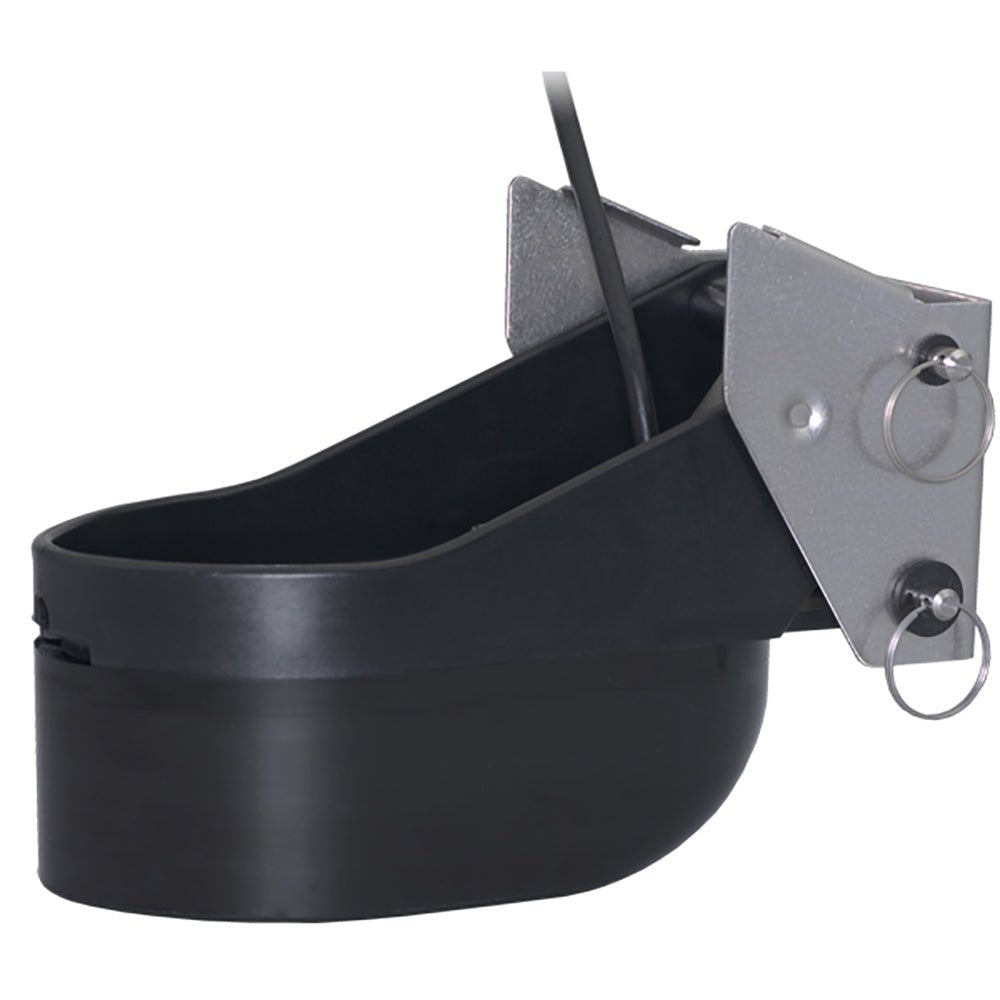

Airmar TM185C-HW High Frequency Wide Beam CHIRP Transom Mount 14-Pin Transducer - CW71614

Airmar TM185C-HW High Frequency Wide Beam CHIRP Transom Mount 14-Pin Transducer

Get more coverage under the boat with Airmar's wide beam Chirp. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, this transducer is truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using this wide beam transducer will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

Features

• CHIRPS across the following bandwidths: — High-Frequency: 150-250 kHz

• 25° Constant Beamwidth

• 1kW (1,000 Watt) RMS Power

• Depth Range: 600'-800'

• Depth & fast-response water-temperature sensor

• Urethane housing and stainless steel kick-up mounting bracket

• Boat Size: 8 m to 12 m (25' to 40')

• Boat Type: Outboards; I/O

• Hull Type: Fiberglass, Wood, Metal

• Can retrofit to existing TM258, TM260, TM265, and TM275 bracket
