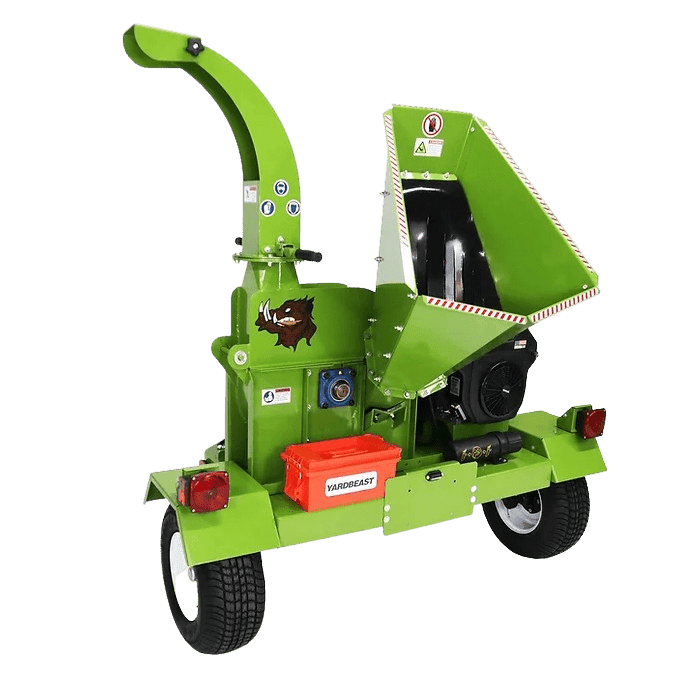

YARDBEAST 4521 678 cc 20HP CRX Engine 4.5" Electric Start V-twin OHV Wood Chipper Shredder New
YARDBEAST 4521 678 cc 20HP CRX Engine 4.5" Electric Start V-twin OHV Wood Chipper Shredder New
Regular price
$6,759.99
Regular price
$7,951.99
Sale price
$6,759.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Featuring a powerful, commercial-grade 680cc CRX 20.5HP engine
Chips up to 4.5' true feed capacity with exceptional self-feeding capability
Highway towable with 2' ball receiver and 1,000-lb trailer assist jack
Torsion axle suspension for a smooth ride and big tires that give enormous on-road and off-road potential
Transmission commercial-grade clutch for easy starts and better engine shock load protection
View full details
Chips up to 4.5' true feed capacity with exceptional self-feeding capability
Highway towable with 2' ball receiver and 1,000-lb trailer assist jack
Torsion axle suspension for a smooth ride and big tires that give enormous on-road and off-road potential
Transmission commercial-grade clutch for easy starts and better engine shock load protection
Features
- COMMERCIAL POWER- The 4521 is equipped with a CRX 680cc engine, which gives the consistent commercial power and performance you need to complete your chipping fast and efficiently.
- UNMATCHED CUTTING- Molybdenum, Tungsten, Chromium and Carbon elements come together to create an unrivaled chipping blade. The dual blade disk is machined from 3/4 inch steel and precisely angled blade cradle to achieve unmatched self feeding chipping power.
- SOFT RIDER- The Yardbeast 4521 features a superior suspension system than some other towable chippers owing to its torsion stub axle. This boosts riding comfort, requires less maintenance, and provides better clearance over objects.
- EPA/CARB FUEL SYSTEM- Heavy-duty gasoline tank with a capacity of up to 5 gallons, allowing you to go longer between refueling. A CARB-compliant gas carbon filter comes included with the tank.
Specifications
| Chipping capacity | 4.5" |
|---|---|
| Rotor RPM | 3,046 |
| Rotor Weight | 85 lbs |
| Blade | Dual A8 Tool Steel Reversible Blade |
| Blade dimensions | 7" x 3" x 3/8" |
| Rotor Construction | 1" thick steel with 3/8" rotor vanes |
| Flywheel | 21-1/4" |
| Feed Hopper | 30" x 20" |
| Frame construction | 3/16" thick steel. Weld seams all around |
| Bearing units | SKF® roller sealed bearings /custom steel housing |
| Discharge height | 72" |
| Control | Discharge deflector |
| Chipper Weight (w/engine) | 860 lbs. |
| Make | Kohler CH640 Command Pro® 20.5HP engine |
| RPM | 3,600 |
| Torque | 35.7t-lb @ Peak Torque |
| Dry Weight | 90 lbs. |
| Displacement | 674cc |
| Oil Capacity | 2 quarts (1.9 Lts) |
| Fuel Tank Capacity | 6.0 Gal w/ Carbon Vapor Canister CARB Approved |
| Emissions | CARB Tier III certified |
| Drive | NORAM® Heavy Duty centrifugal clutch |
|---|---|
| Belts | 2- Gates® Hi-Power II B63 Belts |
| Rotor Pulley | Cast Iron 2-groove pulley with 1-3/8" taper hub |
| Wheels | 20.5" High Speed Wheel - 4 spoke Frame construction |
| Suspension | Tor-Flex Suspension Guards |
| Axle | Fixed, 1/8" Steel thick 21-1/4" wide Hitch |
